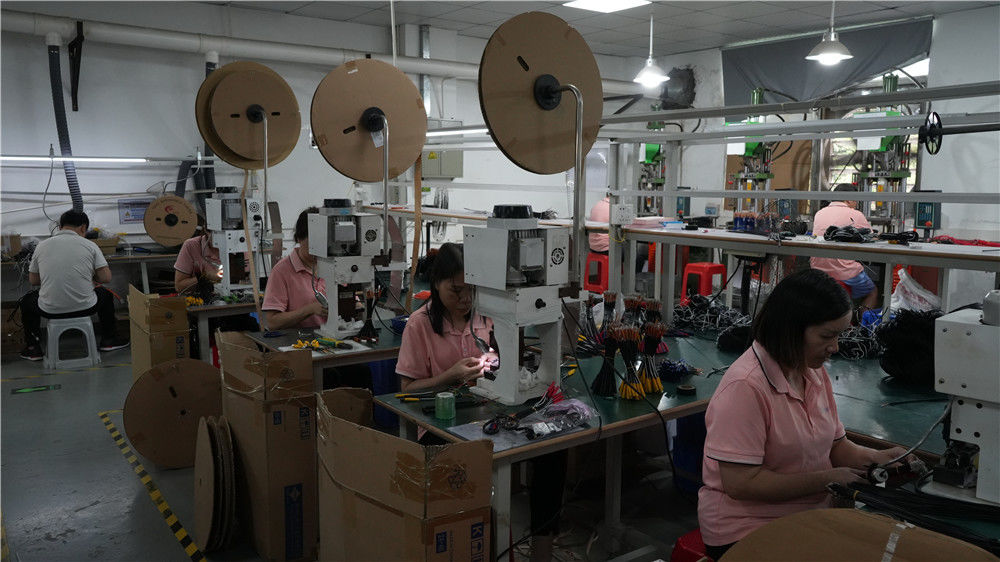

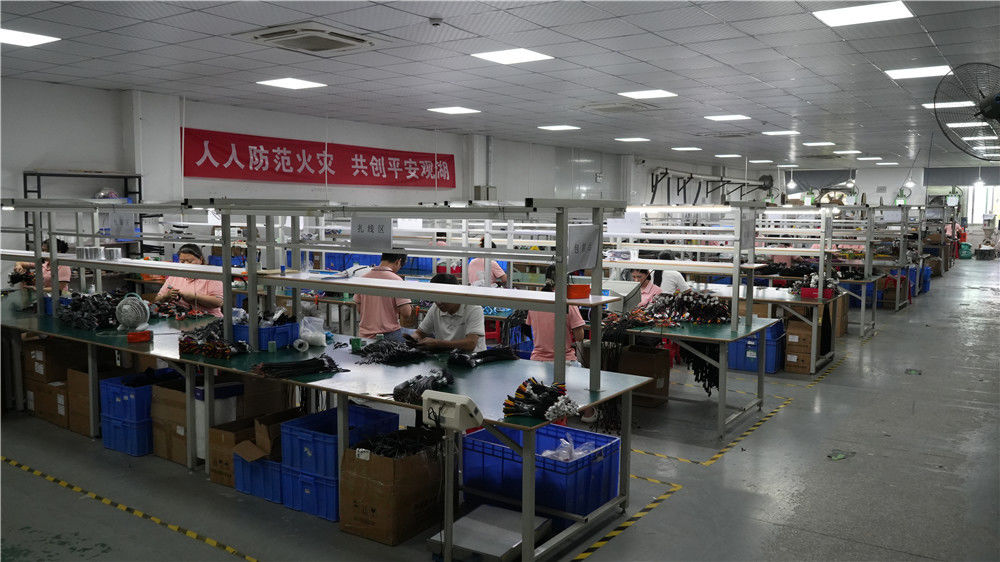

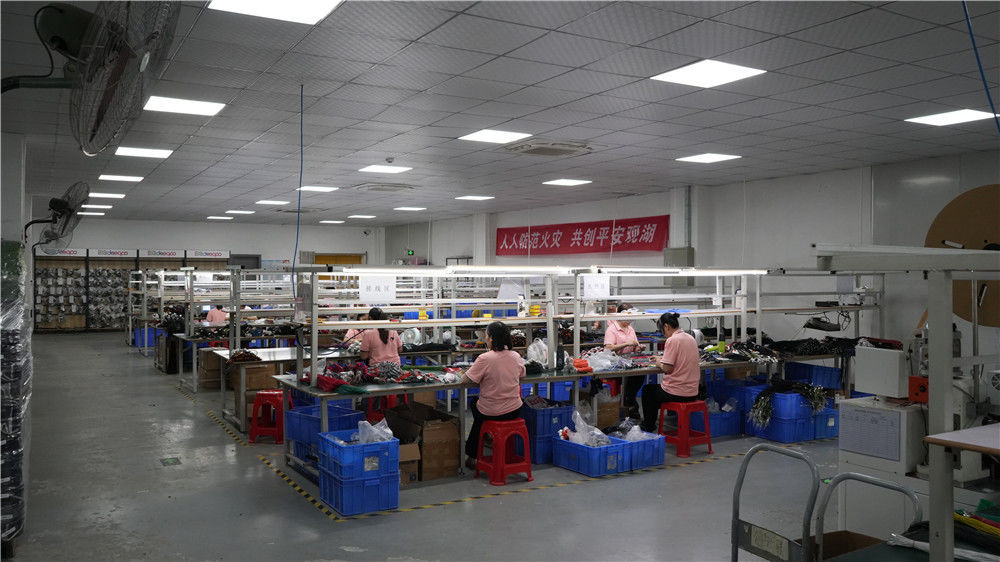

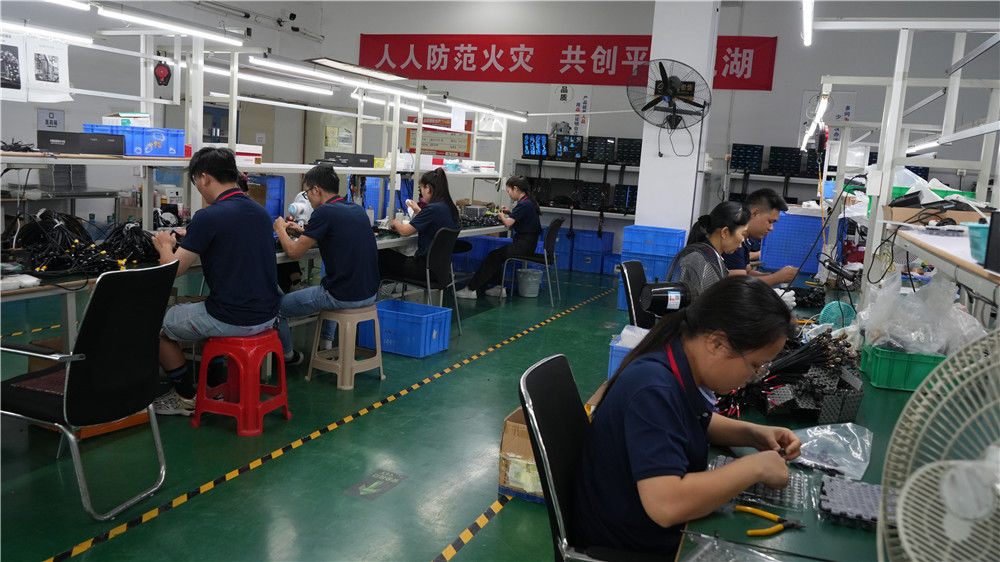

Production Line Overview:
The 360° car surround view camera system production line is a state-of-the-art facility designed to produce high-quality, reliable, and advanced camera systems for the automotive industry. These systems offer drivers a full 360-degree view around their vehicle, enhancing safety and providing a seamless driving experience, especially in parking and low-speed maneuvering scenarios.
Our production line is equipped with the latest automation technologies, ensuring precision manufacturing, high efficiency, and strict quality control. Each component, from camera modules to processing units, is carefully assembled and tested to meet the stringent requirements of the automotive industry.
Key Features of the Production Line:
Advanced Manufacturing Technology:
The production line uses automated assembly machines to ensure consistent precision and reduce human error.
We employ high-precision SMT (Surface Mount Technology) for mounting micro-components on PCBs (Printed Circuit Boards), which enhances the durability and reliability of our systems in challenging automotive environments.
High-Quality Camera Modules:
Our camera modules are manufactured with high-resolution image sensors, designed to perform in various lighting conditions, including low-light and high-contrast environments.
Each camera is equipped with a wide-angle lens to capture a comprehensive field of view, crucial for the accuracy of the 360° surround view system.
Comprehensive Testing and Calibration:

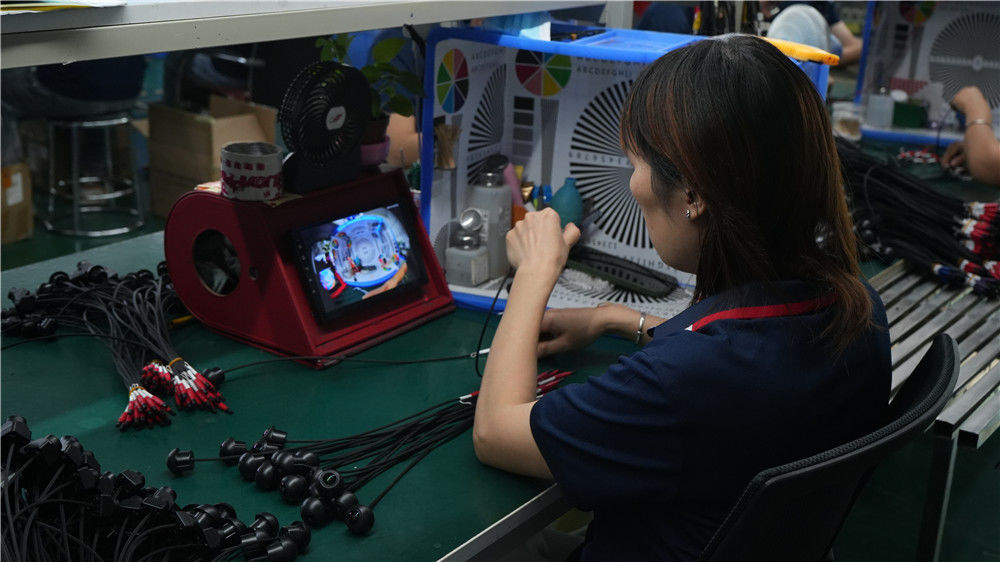

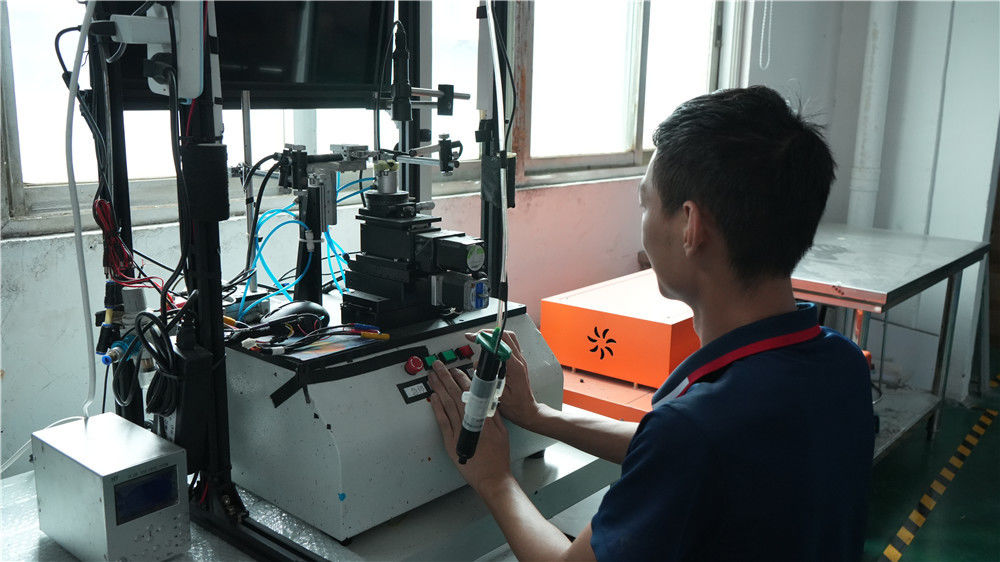

We conduct rigorous testing at every stage of production. Each camera system undergoes functional tests, image quality verification, and environmental stress testing to ensure optimal performance under various conditions (e.g., extreme temperatures, humidity, and vibrations).
Precise calibration is performed to synchronize the multiple cameras, ensuring that the stitched 360° image is seamless and distortion-free.
Automated Assembly Line:
Our assembly line integrates automated processes for camera housing, lens assembly, and circuit board mounting. This ensures consistency in production and reduces the possibility of defects.
The automated systems also allow for high-volume production, meeting the growing demand for automotive 360° surround view camera systems globally.
Efficient Production Workflow:
The production line is designed for lean manufacturing, with optimized workflow processes that reduce waste and increase efficiency. This enables us to deliver high-quality products with reduced lead times.

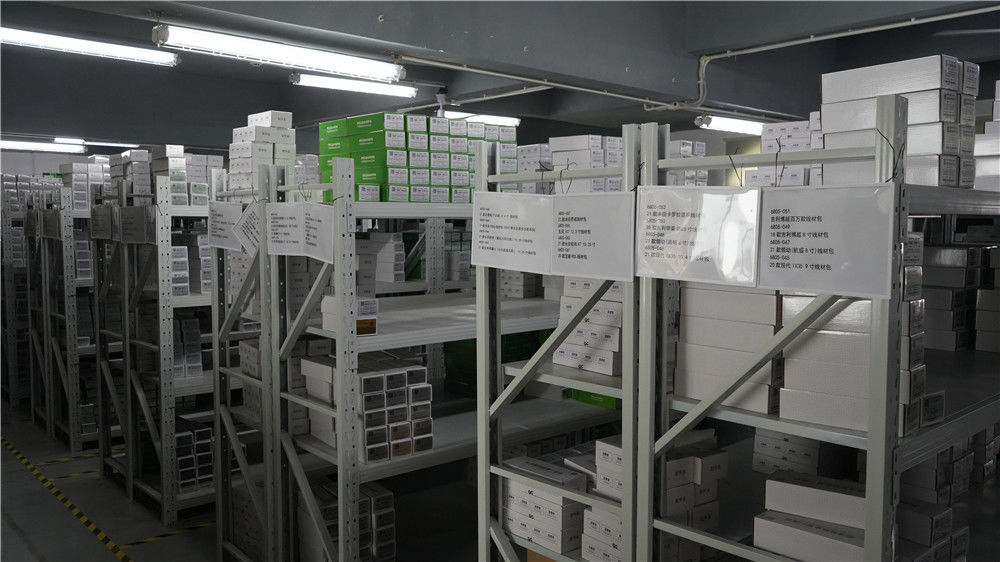

We use just-in-time (JIT) inventory management to ensure that components are available when needed, reducing storage costs and improving production efficiency.
Stringent Quality Control:
We follow ISO/TS 16949 quality management standards, which are specifically tailored for the automotive industry. This ensures that every product meets international automotive safety and quality standards.
Each system is subjected to a comprehensive final inspection, where image stitching, color consistency, and overall system functionality are checked before being packaged for shipment.
Key Components Produced:
Wide-Angle Cameras: Designed to capture a 180° field of view, these cameras are placed around the vehicle (front, rear, and sides) to create a seamless 360° image.
Image Processing Unit (IPU): The core of the system, responsible for stitching the images from multiple cameras and delivering a real-time stitched view to the driver’s display.
Control Software: Custom-developed software that allows for real-time image processing, system diagnostics, and compatibility with various automotive display systems.
Environmental Responsibility:
The production line follows strict environmental regulations, utilizing energy-efficient machinery and adhering to RoHS (Restriction of Hazardous Substances) directives.
We have implemented sustainable practices, such as recycling waste materials and reducing emissions, to minimize the environmental impact of our manufacturing process.
Customization and Flexibility:
Our production line is capable of producing customized 360° surround view camera systems tailored to specific vehicle models and customer requirements.
We offer flexibility in design, such as different camera placements, lens specifications, and system integration, to meet the diverse needs of automakers and aftermarket suppliers.
Conclusion:
The 360° car surround view camera system production line at PanoramaTech Innovations is designed to meet the growing demand for advanced driver assistance systems (ADAS) in the automotive industry. With a focus on innovation, quality, and environmental responsibility, we deliver high-performance, reliable, and customizable solutions that enhance vehicle safety and driving comfort.
By leveraging our advanced production capabilities, we continue to lead the market in providing cutting-edge 360° surround view technologies for automakers worldwide.
As a leading manufacturer of 360 ° in car surround view camera systems, we provides comprehensive OEM (Original Equipment Manufacturing) and ODM (Original Design Manufacturing) services. We are committed to providing highly customized in car surround view camera solutions for global car manufacturers, auto parts companies, and aftermarket suppliers. Through advanced technology, flexible design, and efficient production processes, we help customers enhance brand value and meet the diverse needs of the market.
Our OEM/ODM services cover the entire process from product design, custom development, manufacturing to after-sales support. Whether you need brand customization (OEM) or a complete solution from design to production (ODM), we can provide high-quality products and services according to your needs.
OEM Services:
Our OEM service provides brand customized 360 ° in car surround view camera systems for automotive manufacturers and accessory suppliers. Customers can directly apply our mature technology and products to their vehicle models or product lines, while labeling them with their own brand, thereby shortening product launch time and reducing research and development costs.
Brand customization: We can customize the product appearance, packaging design, and brand logo according to the customer's brand needs, so that the product is consistent with the customer's brand image.
Quick launch: Through our mature production lines and efficient supply chain, OEM customers can quickly obtain high-quality in car surround view camera systems and seize market opportunities.
Quality assurance: All of our products comply with international automotive industry standards and ensure that every system delivered has excellent performance and reliability through strict quality control processes.
ODM service:
For customers who require a complete customized service from concept to finished product, we provide ODM services, covering the entire process from product design, hardware development, software customization to final production. Our experienced R&D team is able to design and develop products with unique features and appearances based on customers' specific needs, helping them stand out in the market.
Customized design: We work closely with our clients to develop customized hardware and software according to their needs. Whether it's special camera layouts, lens specifications, or unique image processing algorithms, we can provide our clients with exclusive solutions.
Software and hardware integration: Our ODM services are not limited to hardware manufacturing, but also include deep customization of software. We provide comprehensive software services such as image processing, control interface, and system integration to ensure seamless integration between the in car surround view system and the customer's vehicle electronic control system.
Prototype design and testing: We provide full support from initial concepts to functional prototypes, helping customers conduct multiple rounds of testing and validation during product development to ensure the functionality and reliability of the final product.
Batch production and delivery: After completing the design, customers can use our advanced production line for large-scale production, ensuring high quality and consistency of products, and delivering them to the global market on time.
Advantages of OEM/ODM services:
Customized solutions: We can provide flexible customized services based on the specific needs of our customers, from hardware to software, to fully meet their personalized needs.
Advanced technical support: We have strong technical research and development capabilities, especially in panoramic image processing, image stitching, low light imaging, and system integration, and can provide customers with leading technical support.
Cost effectiveness: Through cooperation with us, customers can significantly reduce research and development costs and production risks, while utilizing our efficient manufacturing capabilities to enhance the market competitiveness of our products.
Global supply chain and after-sales support: We have a global supply chain network to ensure timely delivery of products and provide strong after-sales support and technical services to customers, ensuring the long-term stable operation of products.
Quality control: We strictly follow international automotive industry standards such as ISO/TS 16949 to ensure that every product undergoes rigorous quality testing and meets the highest requirements of the global automotive industry.
Applicable fields:
Passenger car manufacturers: Provide customized 360 ° surround view camera systems for OEMs to enhance vehicle safety and driving experience.
Commercial vehicles and logistics vehicles: Provide high durability vehicle mounted surround view systems suitable for trucks, buses, trucks, etc., to enhance the driver's field of vision and ensure driving safety.
Aftermarket suppliers: Provide flexible OEM/ODM products for automotive parts suppliers, helping them quickly expand their product line and enter new markets.
Collaboration process:
Requirement communication: Our project team will have in-depth communication with the client to understand their product specifications, functional requirements, and market positioning.
Scheme design: Based on customer requirements, we provide a preliminary design plan, including product functionality, exterior design, cost estimation, etc.
Sample development and validation: After the customer confirms the design proposal, we begin sample development and conduct functional testing and validation.
Batch production: After the samples pass the testing, they enter the batch production stage to ensure timely delivery of high-quality products.
After sales support: Provide comprehensive technical support and after-sales service to ensure the long-term stable performance of the product in the market.
Conclusion:
PanoramaTech Innovations' OEM/ODM services provide customers with a complete solution from concept to finished product, helping them stand out in the fiercely competitive automotive market. Through cooperation with us, customers can leverage our technical expertise, production capacity, and global supply chain network to quickly launch high-quality 360 ° car surround view camera products, enhance brand competitiveness, and meet constantly changing market demands.
Company Background
Our company specializes in the fields of intelligent transportation and automotive electronics, dedicated to developing high-performance car 360 surround view camera systems. With years of technological accumulation and industry experience, our team consists of seasoned engineers and researchers from various disciplines, including optics, electronics, software development, and automotive engineering.
Development Goals
The main goals of developing the car 360 surround view camera system are:
Enhancing Driving Safety: By providing a panoramic view, we aim to reduce blind spots and lower collision risks.
Improving User Experience: We design user-friendly interfaces and intuitive display effects to ensure easy operation for drivers.
Supporting Autonomous Driving: We provide precise environmental perception capabilities for future autonomous driving technologies.
Key Technologies
Multi-Camera Layout: Utilizing four or more wide-angle cameras to ensure complete coverage without blind spots.
High-Performance Image Processing: Employing advanced image processing algorithms for real-time stitching, distortion correction, and enhancement to guarantee image quality.
AI Technology Application: Integrating deep learning algorithms for intelligent object recognition and classification, enhancing safety alerts.
Data Fusion: Combining data from other sensors (such as ultrasonic and radar) to provide comprehensive environmental perception, increasing the accuracy and reliability of the system.
Development Process
Market Research: Analyzing user needs and market trends to determine product features and positioning.
Prototype Design: Creating initial designs based on requirements and developing prototypes for testing and validation.
Technical Development: Developing camera modules, image processing, and software to ensure seamless collaboration of all components.
Testing and Validation: Conducting comprehensive tests in real driving environments to ensure system stability and safety.
Product Iteration: Optimizing and improving the product based on testing feedback to continuously enhance performance.
Application Areas
Our 360 surround view camera system is widely used in:
Passenger Vehicles: Enhancing safety and convenience for family cars.
Commercial Vehicles: Providing safety assistance for trucks and buses used in large-scale transportation.
Autonomous Driving: Supplying necessary environmental perception capabilities for self-driving vehicles.
Future Outlook
We will continue to invest in R&D, focusing on the following areas:
Intelligent Upgrades: Continuously introducing the latest AI technologies to enhance the system's intelligence.
Cost Optimization: Reducing product costs through technological innovation and improved production efficiency, making it more competitive in the market.
Global Market Expansion: Actively exploring international markets to promote our technologies and products in more countries and regions.
Conclusion
Our car 360 surround view camera system aims to provide users with a safe, intelligent, and convenient driving experience. Through ongoing technological innovation and market feedback, we will continuously optimize our products and promote the development of automotive safety technologies.
